HESP

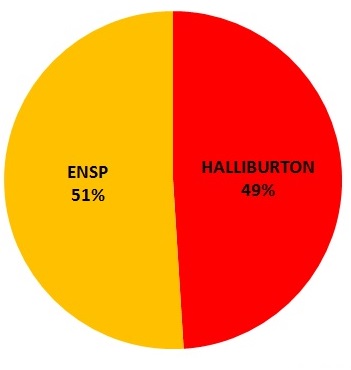

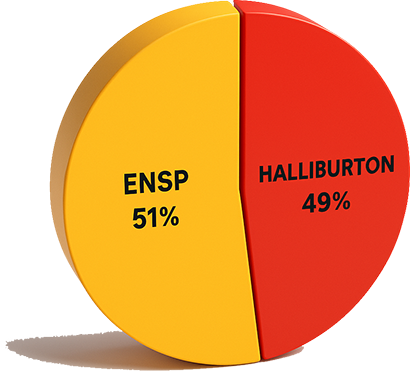

Halliburton		ENSP
49 %		51 %

Mot du président
Novembre 2009

HESP Logging est née . . .
Si les premiers modèles stratégiques ne traitent pas explicitement de la communication, les courants récents permettent... Lire la suite

Renouvellement de la Certification 17-18 Mai 2009

	Après avoir confirmer notre certification aux trois référentiels en 2008, l’organisme certificateur, SGS-ICS France, revient, le 17 et 18 Mai 2009, pour un audit de surveillance ... suite

HESP - Vous êtes sur la page d'accueil

Actualités:

	Renouvellement du comité de participation 29 Août 2009
	Renouvellement du conseil syndical 04 Juin 2009
	Renouvellement de la certification 17-18 Mai 2009
		Toute l'actualité

Evènements:

	Action de sensibilisation 06 Août 2009 Dans le cadre de son programme de sensibilisation, la coordination QHSE a organisé le 06 Août 2009 un exercice de manipulation et d’utilisation des extincteurs ...Suite

	Départ en retraite 18 Juillet 2009 Le Samedi 17 Juillet 2009, au foyer de l’entreprise, a eu lieu la cérémonie de départ en retraite de Monsieur Jose CHIAVONE dénommé « pépé », le coordinateur technique ...Suite
		Tous les évènements

Nouvelles Technologies:

	SPINNER ARRAY TOOL (SAT) The Spinner Array Tool features 6 miniature turbines deployed on bowspring arms, enabling discreet local fluid velocities to be measured at 60 degree...Suite

	RESISTANCE ARRAY TOOL (RAT) The Resistance Array Tool has 12 micro resistance sensors deployed on bowsprings to determine the water hold-up profile across the whole...Suite
		Tous les articles

Nos Services:

OPEN HOLE:

Problems and Solutions

Formation evaluation is critical when making decisions about a well.

Customers want to know:

Answers HESP provides:

What types of fluids are there? Water saturation

Where are these fluids? Types of hydrocarbons present and their mobility

How thick are the zones? Lithology

Are the zones permeable? Images

What type of rock? Rock and fluid samples

Open Hole Applications:

- Complete borehole imaging.
- Fracture identification and analysis.
- Thin bed delineation.
- Determine borehole geometry.
- Borehole stability evaluation.
- Structural dip analysis.

Open Hole Tools:

Lithology and Porosity:

Lithology and porosity tools use properties of radiation and sonic signals to provide formation data. These tools include:

      - Natural Gamma Ray Tool (NGRT)
      - Compensated Spectral Natural Gamma (CSNG™)
      - Dual Spaced Neutron (DSN)
      - Spectral Density Log (SDLT)
      - Full Wave Sonic Tool (FWST) WAVESONICTM

Resistivity Tools:

Resistivity tools use electromagnetic signals to determine formation properties. These tools include:

      - High Resolution Induction Tools (HRI)
      - High Resolution Array Induction (HRAI)
      - Dual Lateralog Tool (DLLT)
      - Micro Spherically Focused Log (MSFL)

* Oil Mud Reservoir Imager Tool (OMRI™)
* Reservoir Description Tool (RDT)
* Electrical Micro Imaging Tool (EMIT)
* Circumferential Acoustic Scanning Too (CAST-V)

Lire le détail des services & outils Open Hole

CASED HOLE:

Formation Evaluation
CSNG, = Lithology
DSNT, = Porosity
TMD-L, RMT = Sw

Production logging PLT
GR,FBS, Qpress.,
Calp, Hydro,
Gas hold up
Temperature log

Cement Evaluation
CAST-V
RCBT
CBL

Casing Inspection
CAST-V
METG

Pipe Recovery services
Radial Cutting torch (RCT)
Severing tool
Free point and back off services

Radial Cutting Torch
Plasma cutter to cut tubing, casing and drill pipe from
No detonation : No explosives
Just like an oxyacetylene torch

Perforating services
Tubing conveyed perforating TCP :
(Vann gun JRC)
Thru tubing guns :( 1 11/16, 2 1/8, 2 7/8 )
Casing guns : ( 3 3/8, 4 ½ )

Stimtube
Fracturing technique
Multiple radial fractures (5-6 m long) and connectivity
Reduce Skin efffect
Enhance well productivity/injectivity
Remove scales, clean perfs prior to hydraulic fracturing

Down Hole Video
- Well bore images in gas or optically clean oil wells
- Photos can assist in well servicing activity
(Fishing,tubular inspection,) -Reservoir fluid identification
- 256 images/run

Lire le détail des services & outils Cased Hole
